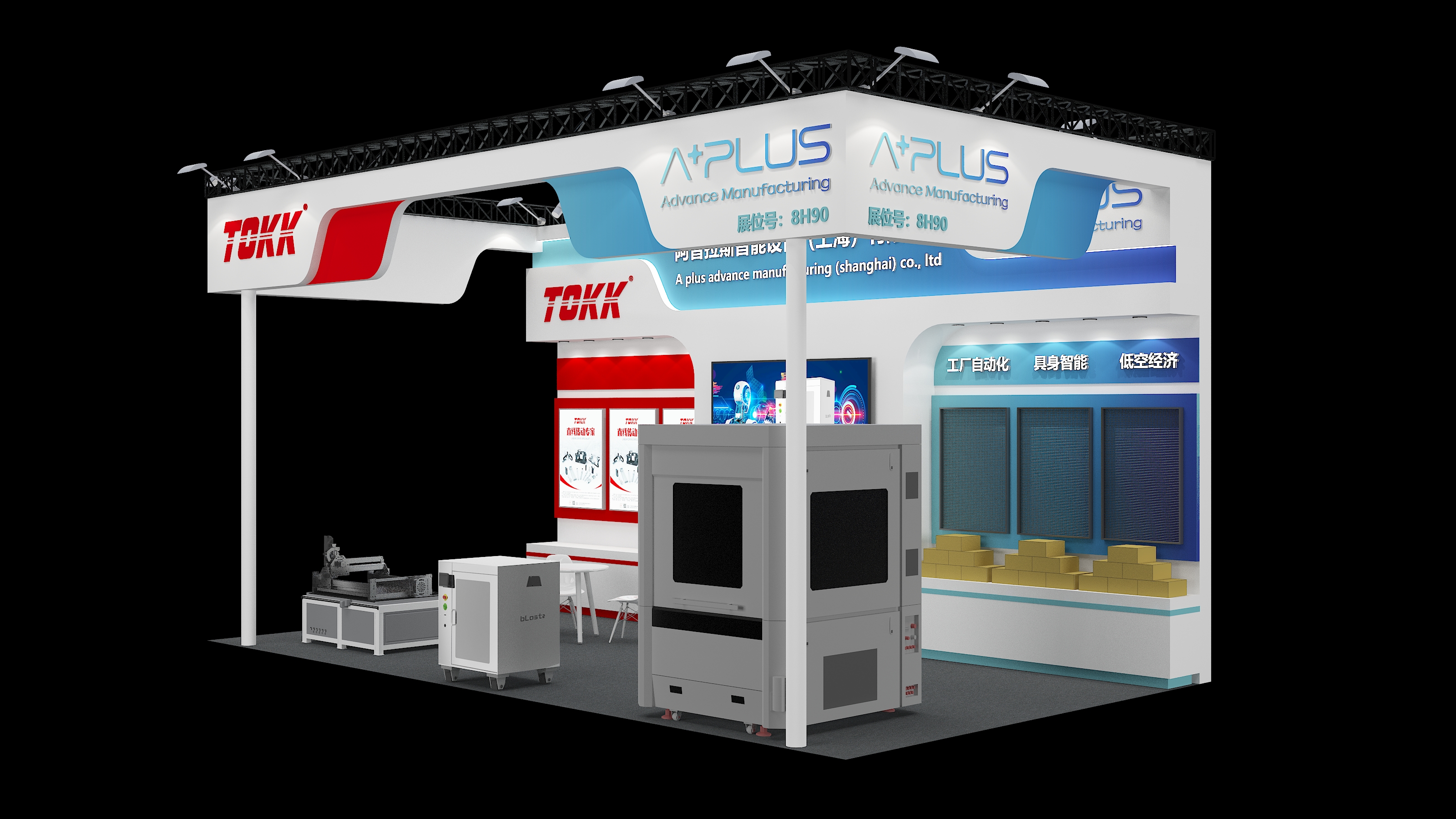

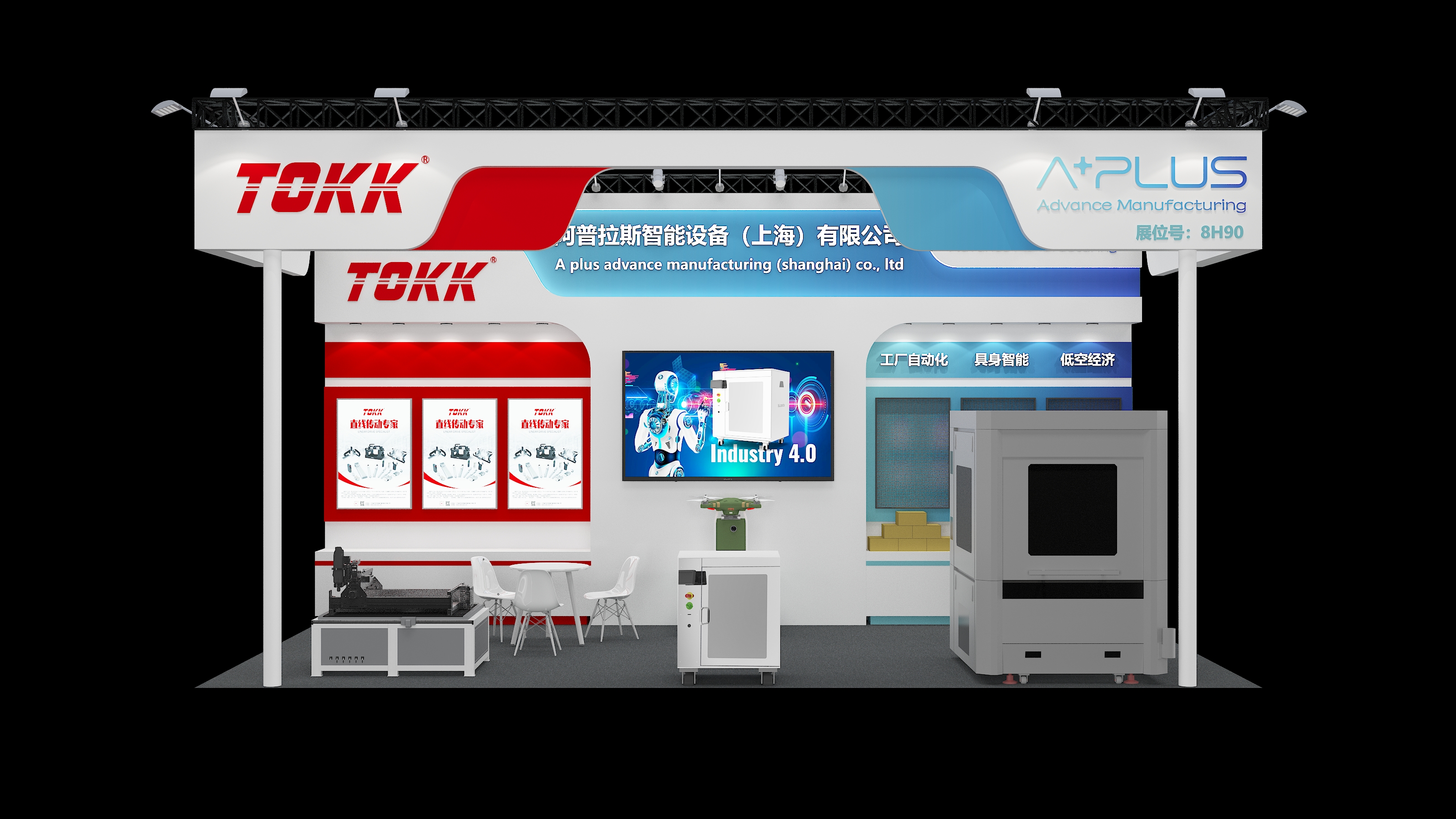

Welcome to A+PLUS Booth 8H90
FFF2.0 agile mfg platform based on Blast series 3dp guarantees the one-off production model for end to end usage

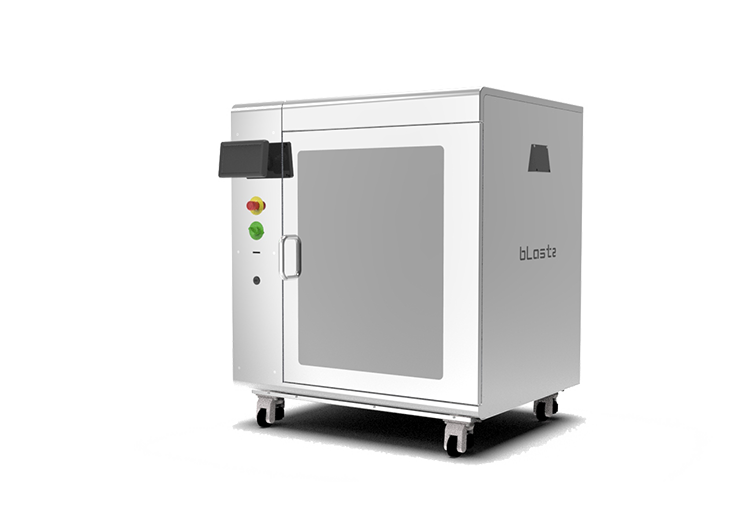

FFF2.0 Blast2
Served with BlastMate High flow recipe filaments and BlastAcc Slice software embedded pre-setting best-fit processing parameters for series production purpose
X:400mm Y:500mm Z:420mm
Verified Print Efficiency:
Dual Heads: 40cm3/hr
Single Head: 66cm3/hr
Default Print Speed: 300mm/s
Recommend Acc: 10,000mm/s2
Linear Motors + Precision Stage
Patented Extrusion System
High flow BlastMate Filament Portfolio
3 sec Quick Release Print Set
Predictive maintenance
1st time Printing prepare time<10mins (incl.2 nozzles xy calibration)

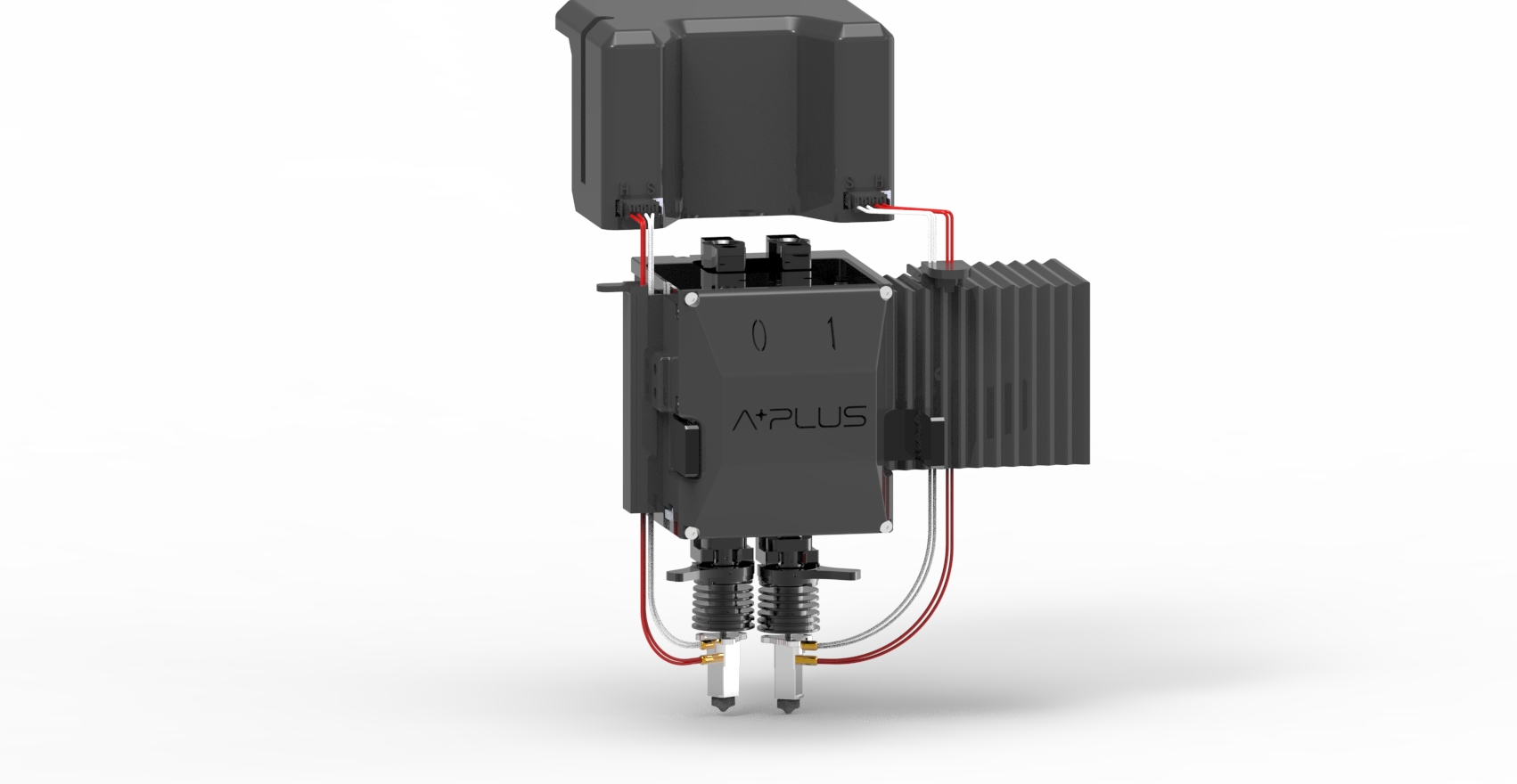

PrintHead of Blast2
1.High flow simulation & Best-fit Tpk/Tcn extrusion pressure
2. Hotend 3s quick release design
3. Passed continuous 1200hrs CF/GF reinforcement filament test
4. Passed 40Kg abrasion test
5. Better Heating & Cooling curve (RT to 350°c<60s)
A+ team encompasses strong knowledge and sophisticated in precision equipment design, hardware, software, material processing and different vertical market applications. After years’ in end-use experience based on semiconductor accuracy motion control and direct drive technology, enable FFF2.0 system to manifest both speed and precision at the same time.
Our mission is to focus on the entire value chain, including the supply of polymers and processing, working closely with eco-system players to accelerate FFF2.0 implementation in series production phase.
